Wet Back Three Pass Horizontal Fire Tube Boiler

  • Wet Back Three Pass Horizontal Fire Tube Boiler
  • Wet Back Three Pass Horizontal Fire Tube Boiler
  • Wet Back Three Pass Horizontal Fire Tube Boiler
  • Wet Back Three Pass Horizontal Fire Tube Boiler

Wet Back Three Pass Horizontal Fire Tube Boiler

    Unit Price: 20000 USD
    Min. Order: 1 Set/Sets
    Packaging: The boiler main unit and the large auxiliary equipment are naked, and other precision instruments or small auxiliary equipment are packed in wooden boxes.
    Productivity: 2000Sets/Year
    Brand: Yuanda
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 2000Sets/Year
    Certificate: ISO,CE,SGS,TUV
    Port: Qingdao,Shanghai,Tianjin

Basic Info

Model No.: WNS0.5,WNS1,WNS2,WNS3,WNS4,WNS6,WNS8,WNS10,WNS15,WNS20

Product Description

Wet Back Three Pass Horizontal Fire Tube Boiler adopts horizontal three-pass wet-back structure,large corrugated furnace and patented thread pipe technology,fire tube boiler is equipped with international first-level brand burners and valve groups,and independently developed high-matching PLC control system to realize muitiple linkages.Wet Back Three Pass Horizontal Fire Tube Boiler is widely used in chemical industry, plastics industry, coatings and automotive industries, bitumen industry, Construction Equipment industry, shipbuilding industry, apparel clothing, washing, ironing, the pharmaceutical industry, biotechnology, food industry, sauna and beauty, hotels, restaurants, sports, fitness and other places where need energy.Wet Back Three Pass Horizontal Fire Tube Boiler is a classical shell type boiler, with classical design: firetube+ wetback+ 3pass. Fire tube boiler average thermal efficiency >95%, design working life span more than 15years.


Wet Back Three Pass Horizontal Fire Tube Boiler for Sale

Wet Back Three Pass Horizontal Fire Tube Boiler for Sale


Wet Back Three Pass Horizontal Fire Tube Boiler Technical datasheet:
Boiler Model WNS0.5 WNS1 WNS2 WNS3 WNS4 WNS6 WNS8 WNS10 WNS15 WNS20
Rated steam capacity(T/H) 0.5 1 2 3 4 6 8 10 15 20
Rated steam pressure(Mpa) 1.0/1.25/1.6/2.5
Rated steam temperature(ºC) 184/194/204/226
Feed water temperature(ºC) 20/104
Thermal efficiency(%) >98
Nox emission(mg/m3) 120/80/30
Exhaust gas temperature(ºC) <60
Fuel type Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas
Fuel consumption Light diesel oil(kg/h) 32.5 64.6 129.3 192.9 258.2 388.6 514.6 641.7 960.1 1276.2
Natural gas(Nm3/h) 35.7 70.1 140.3 212.1 283.4 424.2 566.3 707.8 1061.7 1415.8
Max transportation weight(t) 3.5 5.5 8.0 10.7 11.6 17.5 22.5 26.8 35.2 45.5

Wet Back Three Pass Horizontal Fire Tube Boiler Advantages:

Wet Back Three Pass Horizontal Fire Tube Boiler for Sale

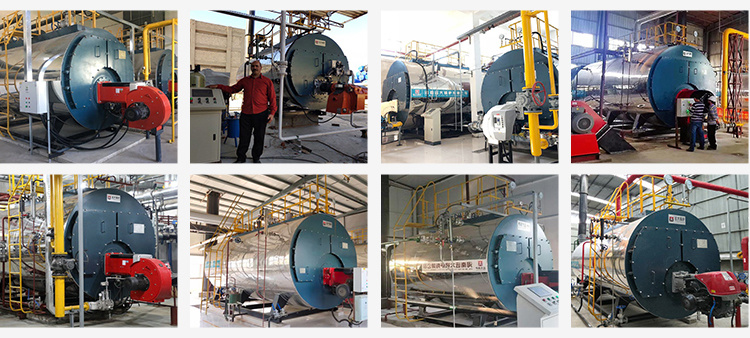

Our Wet Back Three Pass Horizontal Fire Tube Boiler Cases:
Wet Back Three Pass Horizontal Fire Tube Boiler for Sale

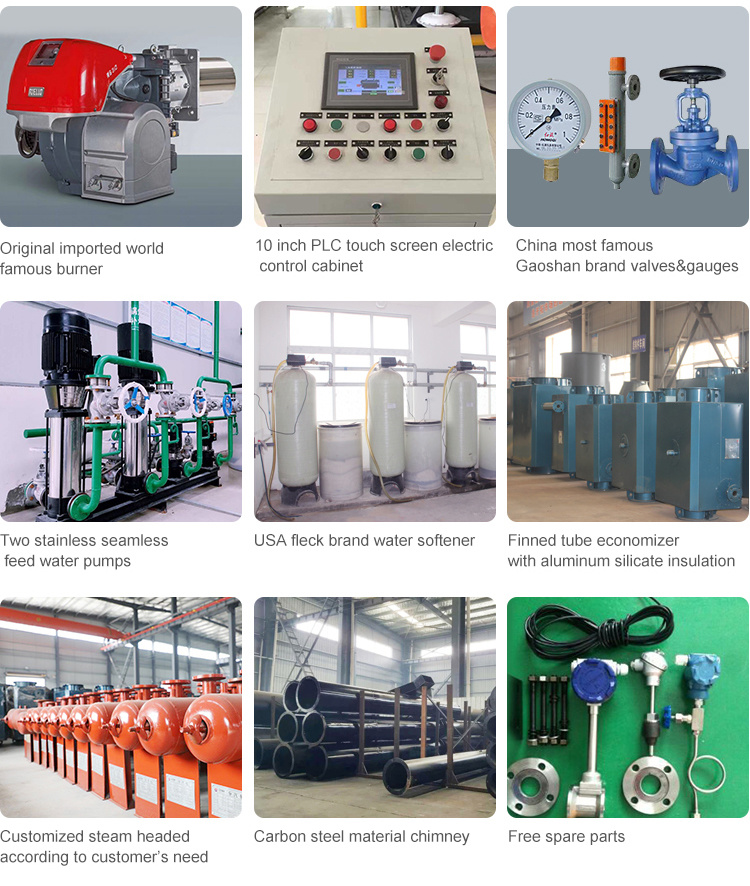

Wet Back Three Pass Horizontal Fire Tube Boiler Accessories:
Wet Back Three Pass Horizontal Fire Tube Boiler for Sale
Packing and shipping:

1. Way of delivery: by Sea or Railway or truck based on needs
2. Shipping model: by normal container and flat rack or bulk cargo based on differnent capacity. We have stable and experienced cooperate shipping company, and we will suggest suitable container.
3. Customers specifying freight forwarders or we send bottom shipping price from our forwarder partner for your reference, negotiable shipping methods.
4. Packing: nude for boiler main part in nude, accessories in export-use wooden box.
5. Payment Terms: T/T, LC; 30% deposits; 70% balance before delivery.
Wet Back Three Pass Horizontal Fire Tube Boiler for Sale
Our service:
Wet Back Three Pass Horizontal Fire Tube Boiler for Sale
Pre-sale service:

We help customer choose the best boiler model according to different requirements of various industry. Before delivery we will provide foundation drawing, layout drawing, boiler room layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product.
After-sale service:
1.provide full range of original spare parts.
2.Engineers abroad installation and commissioning service is available.
3.Our engineers will held a training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.

Company introduction:

Henan Yuanda Boiler Co., Ltd,established in 1956. Locates in Xihua County of Henan Province, is one of the enterprises which firstly obtained boiler manufacturing license in China from 1983. We have A-Class license for boiler manufacturing, D-Class license for pressure vessels, and certifications for boiler installation, commissioning and maintenance. We are a high-tech enterprise integrating manufacturing, designing, engineering and servicing gas, oil, coal,biomass,wood and solid waste fired steam,hot water and thermal fluid(hot oil) boilers.

Our company participated in the drafting of national boiler standards, and has more than 60 patents, passed ISO9001: 2015 Quality Management, ISO14001: 2015 Environmental Management, OHSAS18001: 2007 Occupational Health And Safety Management System Certification.

For more than 60 years, our company focus on R&D and production of high efficiency, energy saving and environmental protection boilers.Our products are well-known in domestic markets and were exported to 86 countries and regions. With installations of more than 100,000 projects across all industries worldwide, Yuanda Boiler is recognized for the high code standards, innovative engineering and design, Energy Star rating, and renewable, sustainable solutions and operational efficiency.

Our company keep the business philosophy of "Quality Oriented, Sincerity Promoted" to create greater value for customers and make greater contributions to the society.

Company Target : Be Century-old Enterprise, Create International Brand!
Wet Back Three Pass Horizontal Fire Tube Boiler for Sale
Dear friend,please send us inquiry to get detailed quotation now! Looking forward to hearing from you!

Henan Yuanda Boiler Co., Ltd.

 Henan Yuanda Boiler Co,.Ltd,located in Xihua Country,Henan Province,is the leading industrial boiler manufacturer in China.Founded in 1956,we are one of the leading enterprises which firstly obtained boiler manufacturing license in china.
We have our own R&D team and cooperate with famous high-tech research institutes,such as Beijing "Zhiguang"boiler institute,Harbin Institute of Technology and Xi'an Jiaotong University,which ensures our product in the forefront of technology.Till now,we have got more than 10 boiler patents.
With more than 60 years' experience in boiler design,production,installation and operation,Yuanda Boiler has formed an annual production capacity of 5000 tons of industrial boilers and 6000 tons of various of pressure vessels.The products of Yuanda Boiler have covered China and exported to more than 80 countries in the world.
We have been dedicated to providing safe,energy saving and environmental friendly products to our customers.
Yuanda Boiler welcome you to visit our factory!
